Zinc Self-Drilling Drywall Anchor | Wallboard Anchor | For Pan Head Screws

FULLERKREG Zinc Self-Drilling Drywall Anchors — Wallboard Anchors | For Pan Head Screws

FULLERKREG zinc self-drilling drywall anchors (also known as wallboard anchors) are engineered for fast, reliable fastening into gypsum wallboard (drywall), plasterboard, and similar panel substrates without the need for a pre-drilled pilot hole. The sharp, threaded tip drills directly through the drywall face as the anchor is driven in with a screwdriver, saving time and eliminating the risk of misaligned holes.

Once installed, a pan head machine screw is driven into the anchor, expanding the body behind the wallboard to create a secure, load-bearing connection — even where there is no stud behind the mounting point.

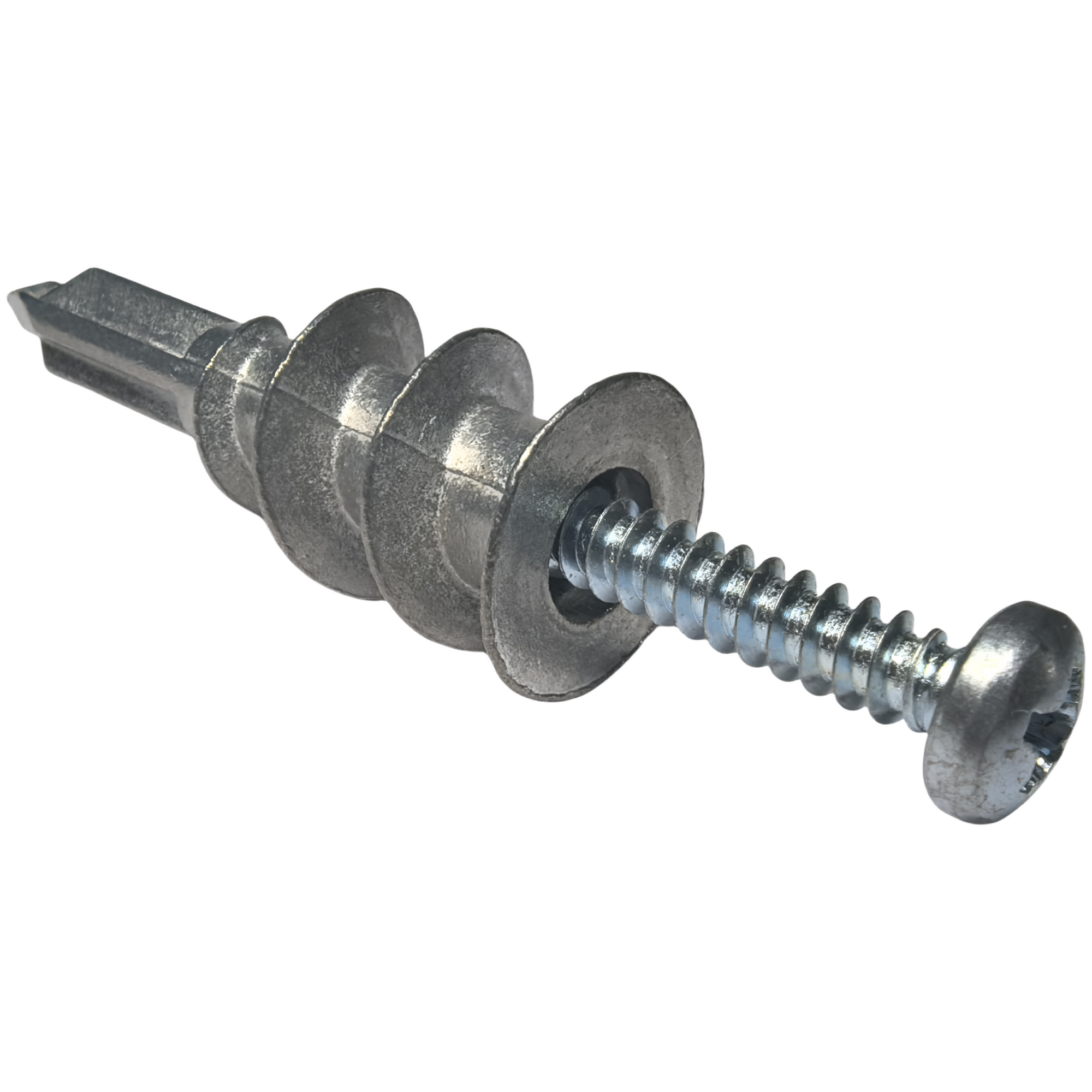

FULLERKREG Zinc Self-Drilling Drywall Anchor — Product Overview Zinc Drywall Anchor — Structure Detail Zinc Drywall Anchor — Installation Diagram Zinc Drywall Anchor — Application Scene

Key Features

  • Material: Zinc alloy — strong, corrosion-resistant, dimensionally consistent
  • Self-Drilling: Sharp threaded tip penetrates drywall without a pilot hole — install with a standard Phillips screwdriver
  • Compatible Fastener: Pan head machine screws (included or sold separately)
  • Substrate: Gypsum wallboard (drywall), plasterboard, wallboard panels
  • Expansion Mechanism: Body expands radially behind the wallboard as the pan head screw is tightened, locking the anchor in place
  • No Pre-Drill Required: Saves time and eliminates pilot hole alignment errors
  • Flush Installation: Anchor head sits flush with the wall surface for a clean finish
  • Reusable: Screw can be removed and re-driven; anchor remains in the wall

How FULLERKREG Self-Drilling Drywall Anchors Work

  1. Position: Hold the anchor perpendicular to the drywall surface at the desired mounting location.
  2. Drive: Using a Phillips screwdriver or drill (low torque), drive the anchor into the drywall. The self-drilling tip cuts through the gypsum and paper facing without a pilot hole.
  3. Seat: Continue driving until the anchor flange is flush with the wall surface. Do not over-drive.
  4. Install Screw: Pass the pan head machine screw through the fixture and into the anchor. Tighten until snug — the anchor body expands behind the wallboard.
  5. Complete: The fixture is now securely mounted. Do not over-torque the screw.

Dimensional Specifications & Load Ratings

Load ratings are for standard 1/2" (12.7 mm) gypsum wallboard in good condition, installed per the instructions above. Actual performance depends on wallboard thickness, condition, and installation quality.

Anchor Size Screw Size (Pan Head) Anchor Length (mm) Anchor O.D. (mm) Max. Drywall Thickness (mm) Approx. Tensile Load (lbs / kg) Approx. Shear Load (lbs / kg)
#6 #6 × 1" Pan Head 25 8.5 12.7 40 / 18 50 / 23
#8 #8 × 1-1/4" Pan Head 29 10.0 15.9 65 / 29 75 / 34
#10 #10 × 1-1/2" Pan Head 32 11.5 15.9 80 / 36 100 / 45
#12 #12 × 1-1/2" Pan Head 35 13.0 19.0 100 / 45 125 / 57

Load values are indicative reference figures. For safety-critical or structural applications, consult a qualified engineer. Apply appropriate safety factors per local building codes. Do not use in crumbling, damaged, or wet drywall.

Compatible Pan Head Screw Specifications

FULLERKREG zinc self-drilling drywall anchors are designed for use with pan head machine screws. Key selection criteria:

  • Drive type: Phillips (most common) or combination Phillips/slotted
  • Head style: Pan head — provides broad bearing surface against the fixture
  • Thread: Machine screw thread (coarse or fine) matching the anchor's internal thread
  • Length: Screw length = fixture thickness + anchor engagement depth (minimum 3/4" / 19 mm engagement)
  • Do not use wood screws or self-tapping screws — they will not engage the anchor threads correctly

Wallboard Thickness Compatibility

Wallboard Thickness Recommended Anchor Size Notes
3/8" (9.5 mm) #6 Light-duty only; verify anchor body clears the back face
1/2" (12.7 mm) #6, #8, #10 Standard residential drywall — most common application
5/8" (15.9 mm) #8, #10, #12 Type X fire-rated drywall; commercial construction
3/4" (19.0 mm) #10, #12 Double-layer or specialty wallboard

Typical Applications

  • Hanging picture frames, mirrors, and artwork on drywall
  • Mounting shelving brackets, curtain rods, and towel bars
  • Installing light fixtures, switch plates, and electrical accessories
  • Securing cabinet hardware, hooks, and coat racks
  • Attaching TV mounts, speaker brackets, and AV equipment (within rated load)
  • General interior fastening where studs are not accessible

Installation Best Practices

  • Check for obstructions: Before installing, verify there are no electrical wires, plumbing pipes, or other utilities behind the drywall at the installation point.
  • Use low torque: Drive the anchor by hand or with a drill set to low torque. High-speed driving can strip the anchor head or crack the drywall.
  • Drive flush, not below: The anchor flange must be flush with the wall surface — countersinking weakens the holding capacity.
  • Do not over-torque the screw: Tighten until snug. Over-tightening pulls the anchor through the drywall.
  • Inspect the drywall: Do not install in damaged, wet, or crumbling drywall. The anchor requires intact gypsum and paper facing to develop full holding strength.
  • Weight distribution: For heavy loads, use multiple anchors and distribute the load across several mounting points.
  • Stud preferred for heavy loads: For loads exceeding the anchor rating, locate a stud and fasten directly into the framing.

Anchor Classification: Where Zinc Self-Drilling Anchors Fit

Anchor Type Substrate Pre-Drill Required Typical Load Range Best For
Zinc Self-Drilling (this product) Drywall / Wallboard No 40–125 lbs (18–57 kg) Fast installation, no stud access, light-to-medium loads
Plastic Expansion Anchor Drywall / Masonry Yes 10–50 lbs (5–23 kg) Very light loads, temporary fixtures
Toggle Bolt Drywall / Hollow wall Yes (large hole) 100–300 lbs (45–136 kg) Heavy loads, ceiling mounting
Lag Shield Anchor Concrete / Masonry Yes 500+ lbs (227+ kg) Structural fastening into solid masonry

Material: Zinc Alloy

  • Die-cast zinc alloy — high strength-to-weight ratio, consistent dimensional accuracy
  • Corrosion-resistant for dry interior environments
  • Ductile enough to expand uniformly without cracking under screw torque
  • Sharp self-drilling tip maintains geometry through the drywall penetration without deforming
  • Not recommended for wet, exterior, or high-humidity environments without additional protection

Packaging & Supply

  • Available as anchor-only or combo packs (anchor + pan head machine screw)
  • Standard retail packaging: 5 pcs, 10 pcs, 25 pcs, 50 pcs, 100 pcs per pack
  • Bulk supply available for contractors, hardware distributors, and OEM customers
  • Mixed-size assortment packs available on request
  • B2B wholesale pricing available — contact FULLERKREG for volume quotations
  • Full dimensional and material documentation available on request

Why Choose FULLERKREG Zinc Self-Drilling Drywall Anchors?

  • Zinc alloy construction delivers superior strength and durability vs. plastic alternatives
  • Self-drilling tip eliminates pilot hole step — faster installation, fewer tools required
  • Flush-seating flange provides a clean, professional finish on the wall surface
  • Consistent expansion geometry ensures reliable holding power across the rated load range
  • Compatible with standard pan head machine screws — no proprietary fasteners required
  • Full size range from #6 to #12 for versatile application coverage
  • Competitive lead times; bulk and custom packaging available for trade customers
